AirHMI 7" Display Enclosure

Product code: AIRBOX7

Enclosure designed for 7" AirHMI displays. You can mount the display directly through the screw holes.

  • Compatible display7" AirHMI
  • MountingScrew holes
Request a Quote View on airhmi.com 3D Print Drawing (PDF) 3D Print File (DXF)

About the Product

Made for 7" AirHMI displays.

You can screw it directly through the screw holes.

Technical Specifications

General

Compatible display7" AirHMI displays
MountingDirectly through the screw holes

Applications and Compatibility

Where is it used?

  • 7" operator panel next to the machine
  • Wall-mounted monitoring and control screens
  • Fast installation without cutting the panel door
  • Trade fair and demo stands

Frequently asked questions

How is the display fixed in the enclosure?

The display is mounted by screwing it directly through the enclosure's screw holes.

Which display packages can it be used with?

The enclosure depends on the display size; it can be used with all Elementary, Advanced and Industry AirHMI displays of the same size.

Which board size fits the enclosure?

7" AirHMI board: 180.97 × 107.31 mm, active area 164.90 × 100.00 mm.

Is a 3D print file available?

Yes. The PDF and DXF drawings of the 7" enclosure are on the Downloads page and in the links on this page.

Compatible products

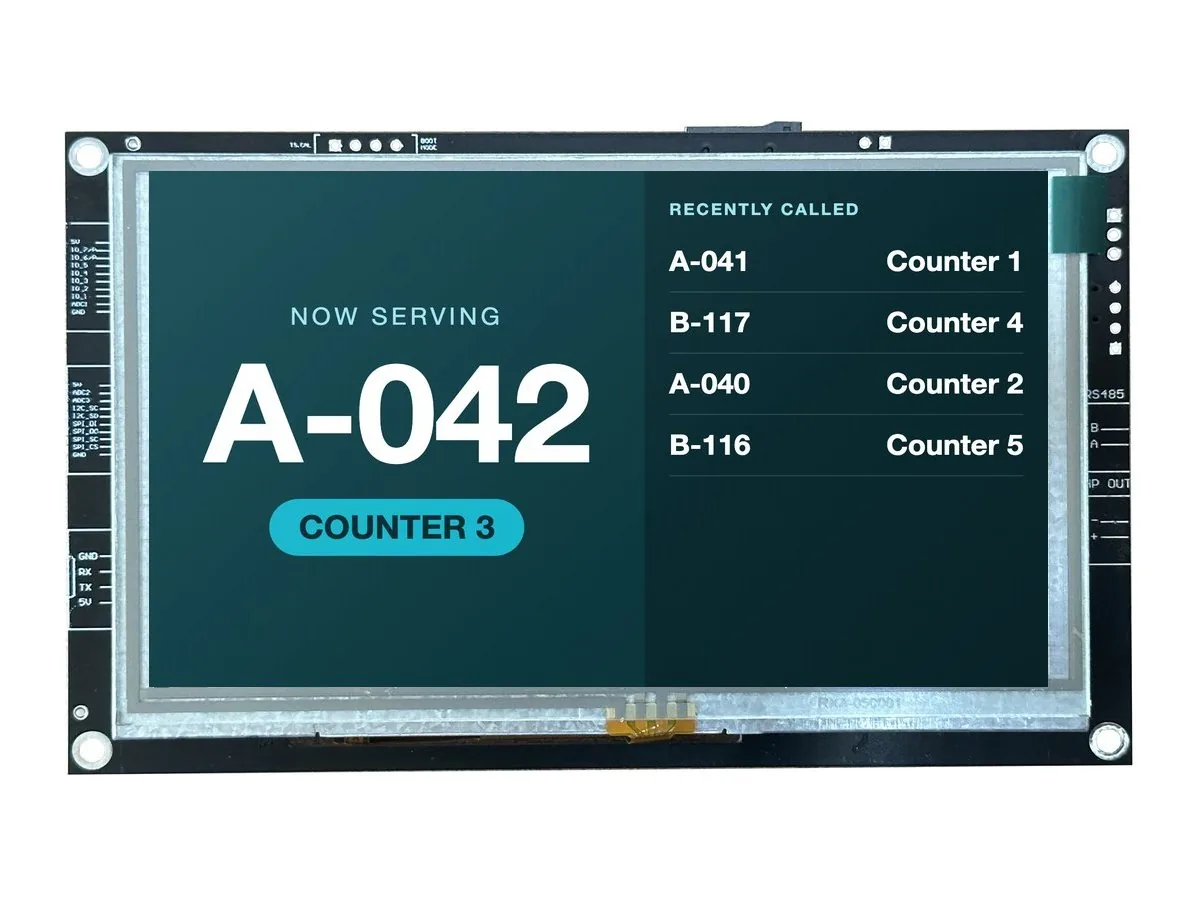

AirHMI 7" Capacitive Advanced AirHMI 7" Capacitive Advanced7" capacitive touch · Advanced package AirHMI 7" Capacitive Industry AirHMI 7" Capacitive Industry7" capacitive touch · Industry package AirHMI 7" Resistive Advanced AirHMI 7" Resistive Advanced7" resistive touch · Advanced package AirHMI 7" Resistive Elementary AirHMI 7" Resistive Elementary7" resistive touch · Elementary package AirHMI 7" Resistive Industry AirHMI 7" Resistive Industry7" resistive touch · Industry package
