Product code: AIR480X272S43_A
4.3" resistive touch AirHMI TFT display, 480 × 272 resolution, Advanced package. Drag-and-drop interface design in Visual Screen Creator, TTL (UART) and optional RS485 (Modbus) communication.

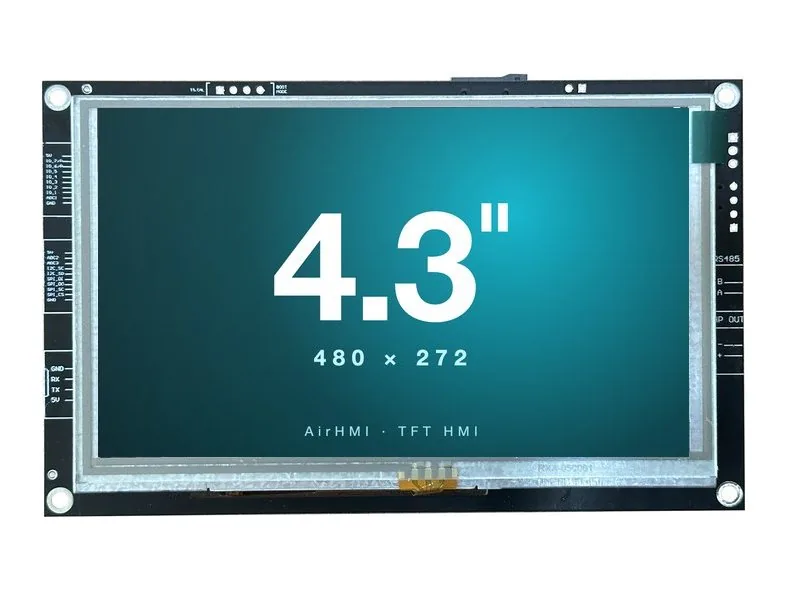

AirHMI 4.3" Resistive Advanced has a 4.3-inch TFT display with 480 × 272 resolution. The 4.3-inch display suits compact devices, narrow panel doors and small control units. Thanks to its pressure-sensitive resistive touch surface, it can also be operated with gloves or a stylus.

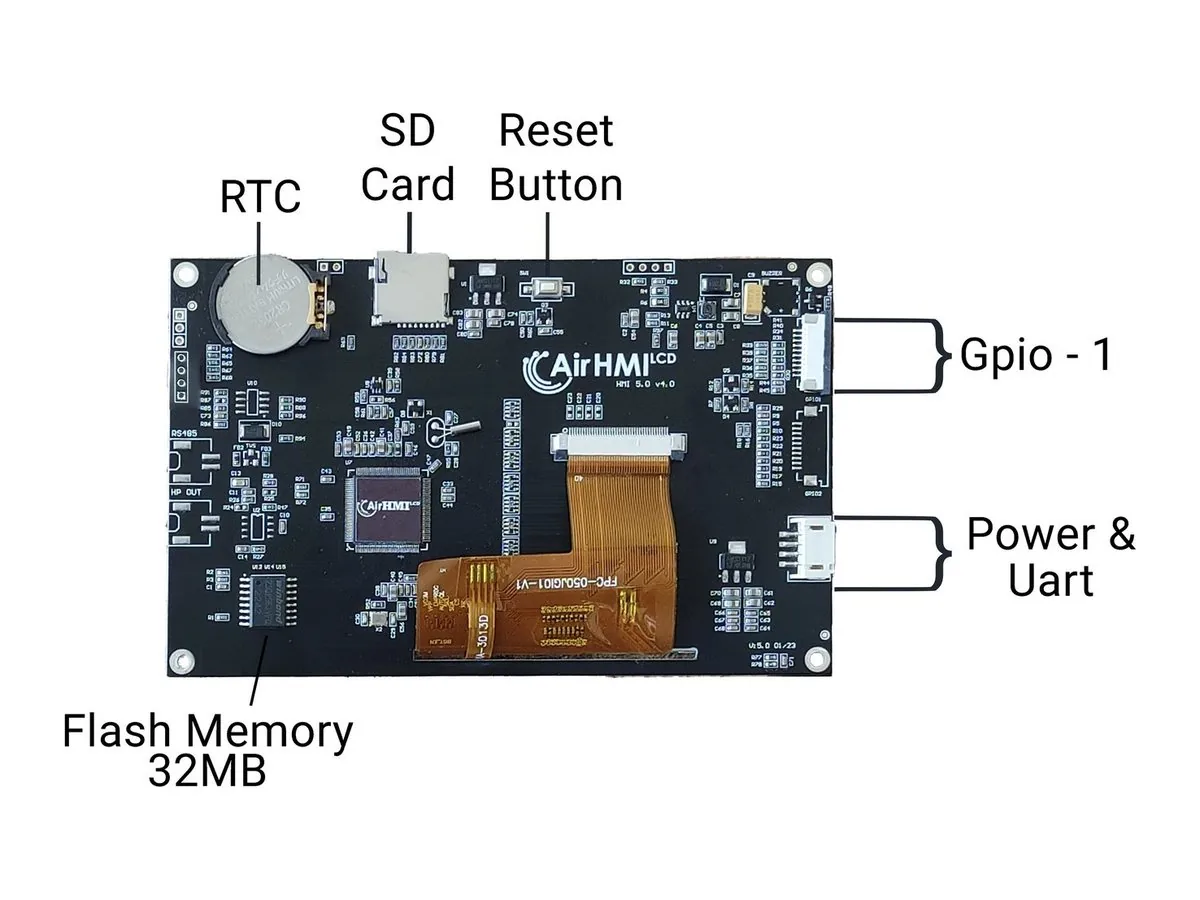

The Advanced package includes 32 MB flash, 5 GPIO, 2 PWM/GPIO, 1 ADC, a real-time clock and a built-in buzzer. This lets the display itself handle simple control tasks such as driving relays or reading buttons.
The interface is designed by drag and drop in the Visual Screen Creator editor using ready-made objects such as buttons, gauges, charts and lists, and extended with C-based code where needed.
The screen shown in the images is a sample greenhouse temperature, humidity and irrigation control interface; the interface is designed entirely for your project.
AirHMI products are manufactured in Türkiye and come with a 2-year warranty. You can compare other sizes and options on the series page.
Easy interface creation with the Visual Screen Creator editor and a C-based programming language
Direct control with 5× GPIO, 2× PWM or GPIO, 1× ADC and 1× 5V output
Buzzer for touch feedback and alerts; real-time clock support
More room for your projects thanks to the large flash capacity
Communication with the control board over TTL (UART); RS485 (Modbus) optional
AirHMI displays are manufactured in Türkiye and come with a 2-year warranty
Let's define the right configuration for your project together with our engineering team.
