Product code: AIR480X272S43_E
4.3" resistive touch AirHMI TFT display, 480 × 272 resolution, Elementary package. Drag-and-drop interface design in Visual Screen Creator, TTL (UART) and optional RS485 (Modbus) communication.

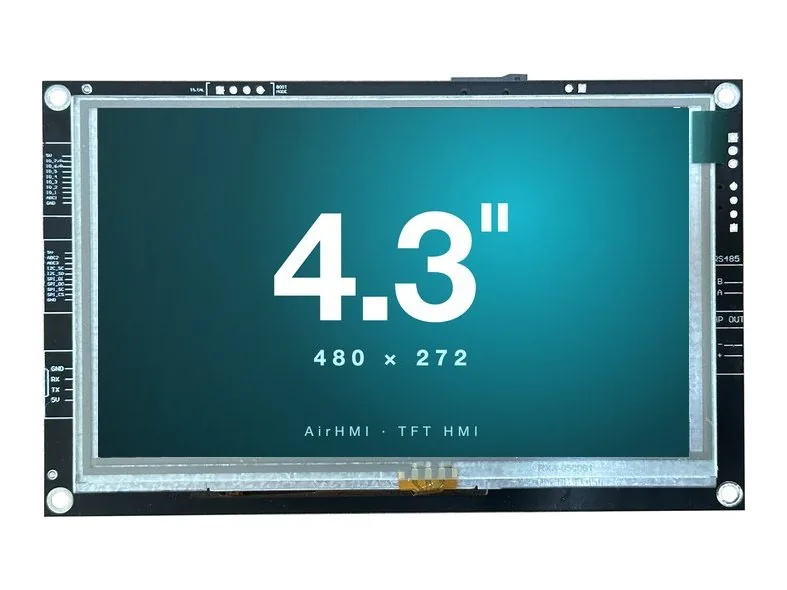

AirHMI 4.3" Resistive Elementary has a 4.3-inch TFT display with 480 × 272 resolution. The 4.3-inch display suits compact devices, narrow panel doors and small control units. Thanks to its pressure-sensitive resistive touch surface, it can also be operated with gloves or a stylus.

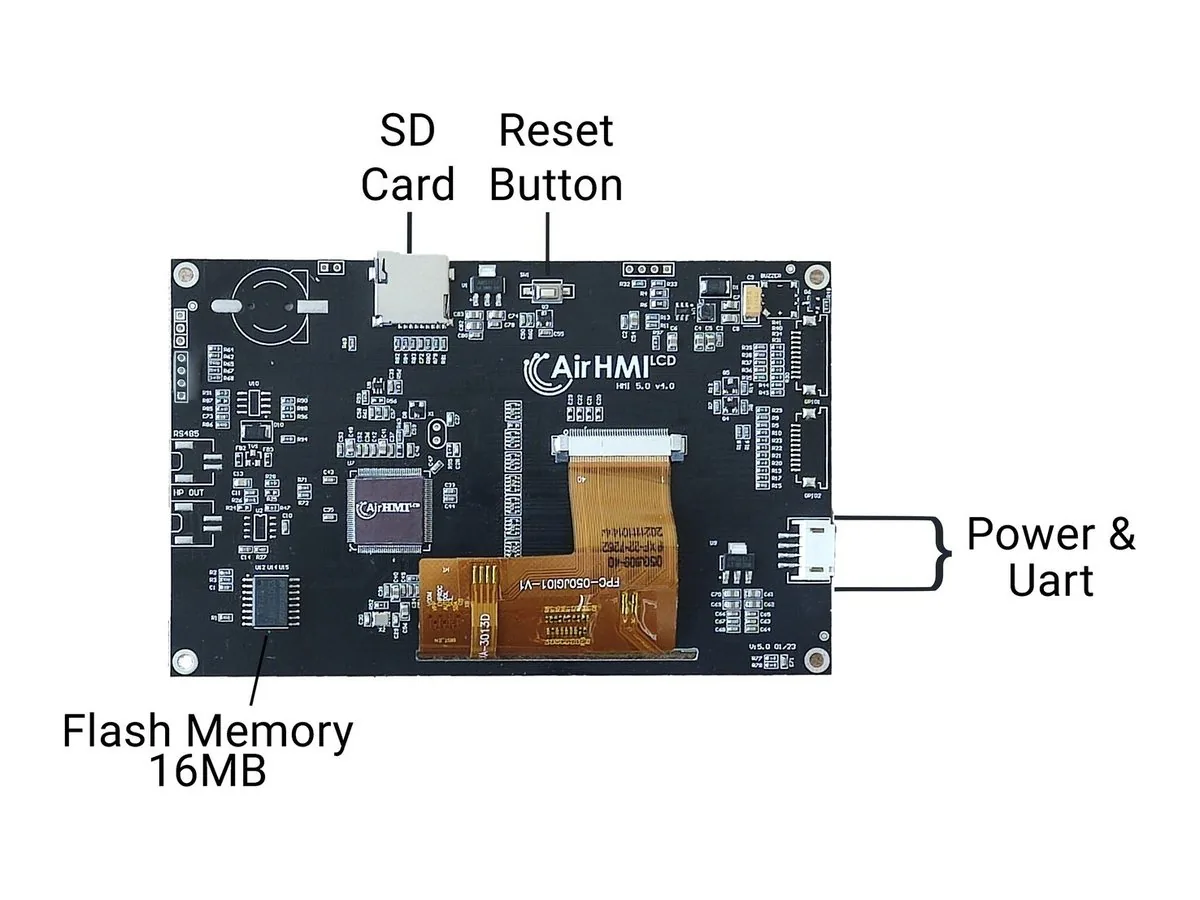

The Elementary package, with 16 MB flash, TTL (UART) and optional RS485 (Modbus), is aimed at basic interface projects. It acts as the display, while the connected board or PLC does the control.
The interface is designed by drag and drop in the Visual Screen Creator editor using ready-made objects such as buttons, gauges, charts and lists, and extended with C-based code where needed.
The screen shown in the images is a sample lighting and blind control panel interface; the interface is designed entirely for your project.
AirHMI products are manufactured in Türkiye and come with a 2-year warranty. You can compare other sizes and options on the series page.
Easy interface creation with the Visual Screen Creator editor and a C-based programming language
Communication with the control board over TTL (UART); RS485 (Modbus) optional
Enough memory for basic interface projects, SD card support
AirHMI displays are manufactured in Türkiye and come with a 2-year warranty
Let's define the right configuration for your project together with our engineering team.
